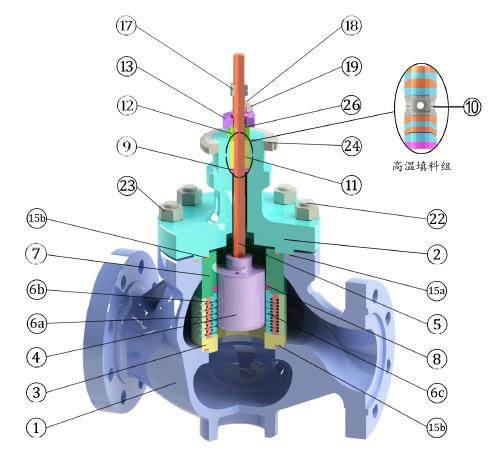

5004M Multi-stage pressure-reducing sleeve-guided control valve

Views:

1000

The Series 5004M valves are engineered specifically for critical anti-cavitation and low noise applications on liquids, gases or steam. Multi-stage cage controls flowing velocities in the valve trim by forcing the process fluid to follow a tortuous path of right-angle turns. The resistance to flow provided by these turns reduces fluid velocities significantly. Therefore, a vena contracta is never formed in the trim and noise and cavitation are stopped before they can start.

Classification:

Detailed

The Series 5004M valves are engineered specifically for critical anti-cavitation and low noise applications on liquids, gases or steam. Multi-stage cage controls flowing velocities in the valve trim by forcing the process fluid to follow a tortuous path of right-angle turns. The resistance to flow provided by these turns reduces fluid velocities significantly. Therefore, a vena contracta is never formed in the trim and noise and cavitation are stopped before they can start.

Body size: DN40~450(1-1/2”~18”)

Body rating: PN16~PN100(ANSI150#~600#)

Body Material: LCB、WCB、WC5、WC6、WC9、CF8、CF8M、CF3、CF3M

Operating temperature: -196~+566℃
