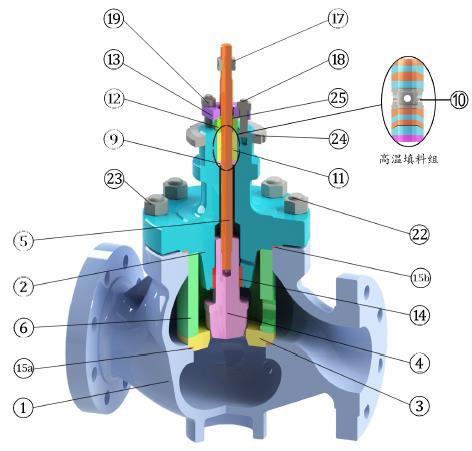

5001C Top-guided sleeve single-seat control valve

Views:

1000

The Series 5001C top guided single seated control valves, Suitable for high pressure difference flash cavitation occasions, strong sleeve to protect the valve body from flash and cavitation damage. Valve body, fluid channel is streamlined S, small pressure drop loss, large flow, wide adjustable range. Large guiding area of spool and good vibration resistance. Regulating valve with multi -spring film actuator, compact structure, large output force.

Classification:

Detailed



The Series 5001C top guided single seated control valves, Suitable for high pressure difference flash cavitation occasions, strong sleeve to protect the valve body from flash and cavitation damage. Valve body, fluid channel is streamlined S, small pressure drop loss, large flow, wide adjustable range. Large guiding area of spool and good vibration resistance. Regulating valve with multi -spring film actuator, compact structure, large output force.

Body size: DN15~200(1/2”~8”)

Body rating: PN16~PN100(ANSI150#~600#)

Body Material: LCB、WCB、WC5、WC6、WC9、CF8、CF8M、CF3、CF3M

Operating temperature: -196~+566℃
