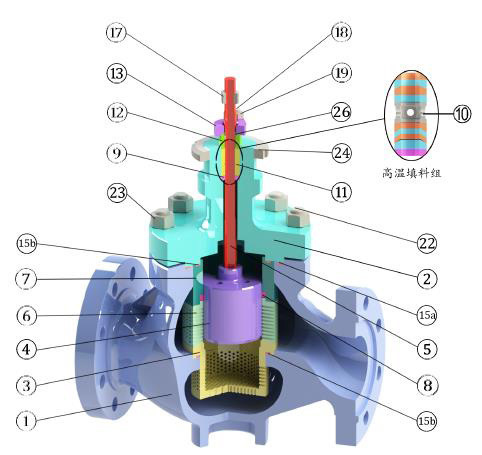

5004N Multi-port sleeve-guided control valve

Views:

1000

The Series 5004N Multi-hole Cage Guided Control Valves, This Series provides control valves that meet low noise and anti-cavitation requirements by incorporating a multi-hole type cages, instead of the standard cages, in the 5003C Series cage guided control valves. All the parts except the multi-hole cage are interchangeable with the parts of the 5003C Series accordingly. For those severe fluid conditions that cannot be covered by this Series, please select CCZK multi-stage type control valves.

Classification:

Detailed



The Series 5004N Multi-hole Cage Guided Control Valves, This Series provides control valves that meet low noise and anti-cavitation requirements by incorporating a multi-hole type cages, instead of the standard cages, in the 5003C Series cage guided control valves. All the parts except the multi-hole cage are interchangeable with the parts of the 5003C Series accordingly. For those severe fluid conditions that cannot be covered by this Series, please select CCZK multi-stage type control valves.

Body size: DN40~450(1-1/2”~18”)

Body rating: PN16~PN100(ANSI150#~600#)

Body Material: LCB、WCB、WC5、WC6、WC9、CF8、CF8M、CF3、CF3M

Operating temperature: -196~+566℃
