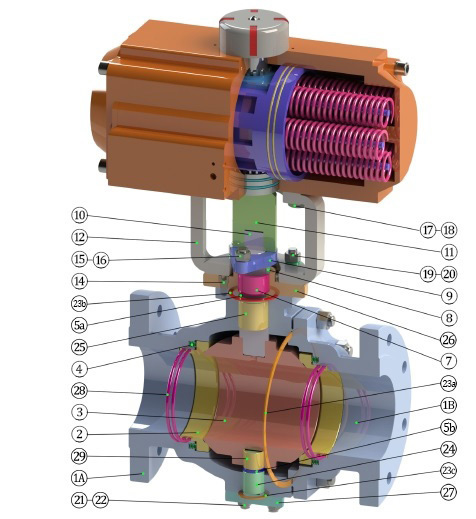

3002W Metal-sealed straight-through shut-off ball valve
This 3002W series provides Zero-Leakage ball vavles in several service application with high temperature and/or high pressure. The ball and seat are hard coated with chrome carbide or tungsten carbide or Metco 16C, which has high erosion and abrasion resistance. They are mate-lapped based on our own technique to ensure sealing. The ball never leaves the seat and wipes contaminants away.
This self-cleaning action prevents the interference and damage from contaminants.Available for high temperature and pressure, containing particulates powders and slurries fluids services.
Body size: DN25~800(1”~32”)
Body rating: PN16~PN100(ANSI150#~600#)
Body Material: LCB、WCB、WC5、WC6、WC9、CF8、CF8M、CF3、CF3M
Operating temperature: -45~+566℃
